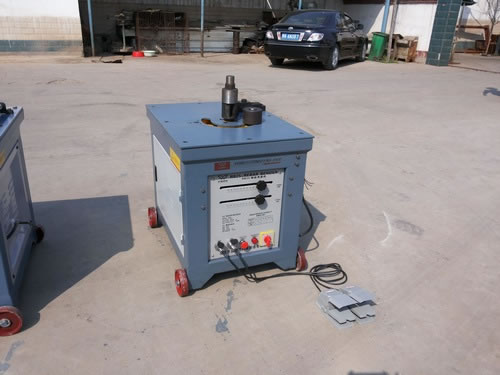

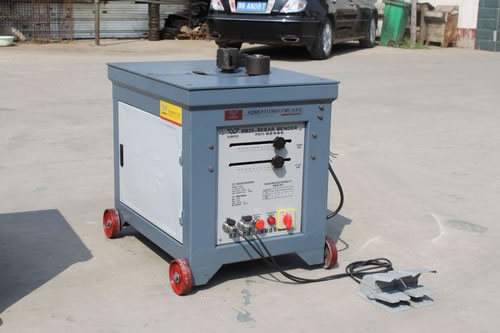

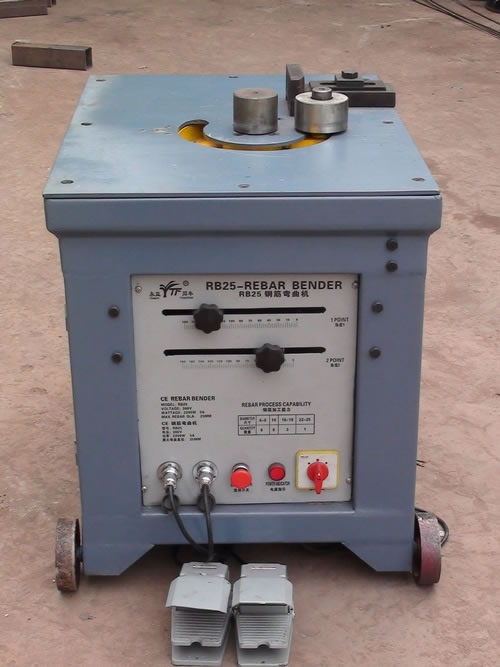

GW25 Automatic Bending Machine

6-25mm steel bar bending machine is applied to bend common plain carbon steel, hot rolling round steel, deformed steel bar, flat steel and square steel automatically. Being a renowned automatic bending machine factory in China, our products share large national and international markets, as it is with low energy consumption, high efficiency, easy operation and maintenance and good working performance. We are devoted to be the leading manufacturer of rebar bender worldwide.

Advantages:

1. 6-25mm steel bar bending machine is with locating pins, which ensures precise and accurate bending angle.
2. It has long working life, as there is a breaker in motor to help prolong motor working life.
3. It works with high speed and low noise.
4. Fully enclosed noise transmission box, high and low speed adjustable.
5. It is with advanced technology, compact structure, high rigidity, simple operation, high safety and stable performance.
6. Automatic bending machine adopts thicken steel plate and high power intermediate speed GB electric motor.
7. It uses helical gear which has strong bending force.

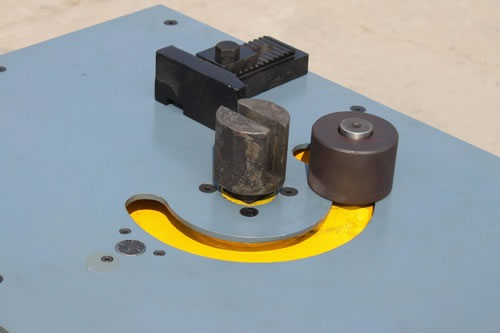

8. Working dish, insert seat and plug wheel are made of 45#, which are extra thick and treated with high frequency.

Specifications of 6-25mm steel bar bending machine:

Item		GW25
Capacity	Ub rod≦450Mpa	Φ6mm-Φ25mm
	II Rebar	Φ6mm-Φ20mm
Spindle Speed		25rpm
Bending Degrees		0-180
Power		2.2KW
Motor		380V/3phase
Weight		240kg
Dimension(L×W×H)(mm)		850×670×730
Motor optional		220V/415V/440V 50HZ/60HZ
Steel Diameter		GW25
10mm		8
12mm		6
16-20mm		3
22mm		1
25-32mm		*

Related equipments/accessories:

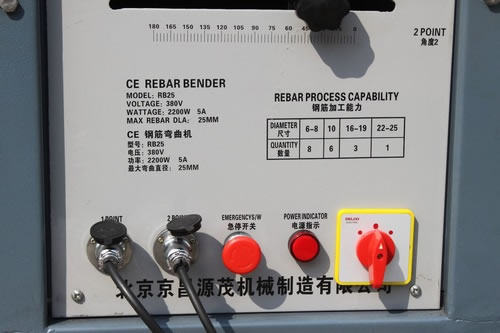

Automatic bending machine is composed of machine body, bending part, bending accessories, electric motor, electric appliance, control panel and foot pedal.
